An Introduction to Combinational Circuits: Basic Concepts and Applications

Combinational circuits are a fundamental building block in the realm of digital electronics. They are integral to the functioning of various digital systems, including computers, calculators, and communication devices. Understanding the basics of combinational circuits is essential for anyone interested in electronics or pursuing a career in this field.



What are Combinational Circuits?

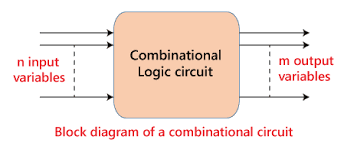

A combinational circuit is a type of digital circuit whose output is solely determined by the current inputs. Unlike sequential circuits, combinational circuits do not have memory elements or feedback loops, meaning they do not store previous states or outputs.

Basic Logic Gates: The Building Blocks

Combinational circuits are constructed using basic logic gates, including AND, OR, NOT, NAND, and NOR gates. These gates perform elementary Boolean operations, which are the foundation of digital logic design.

• AND Gate: Outputs true (1) only if all inputs are true.
• OR Gate: Outputs true if at least one input is true.
• NOT Gate: Outputs the inverse of the input.
• NAND Gate: Outputs the inverse of the AND gate result.
• NOR Gate: Outputs the inverse of the OR gate result.
•



Key Characteristics of Combinational Circuits

1. No Memory:

   • Combinational circuits do not have any internal memory elements. The output is a direct function of the present inputs only.

2. Immediate Response:

   • Changes in input values immediately reflect in the output, without any delay introduced by storage elements.

3. Deterministic Output:

   • The output of a combinational circuit is determined by logical equations based on the design and the current input values.

Designing Combinational Circuits

Designing combinational circuits involves the following steps:

1. Define the Problem:

   • Determine the required inputs and outputs. For example, designing a circuit to add two binary numbers.

2. Truth Table:

   • Create a truth table that maps all possible input combinations to their respective outputs.

3. Boolean Expression:

   • Derive the Boolean expression from the truth table using methods such as Sum of Products (SOP) or Product of Sums (POS).

4. Simplification:

   • Simplify the Boolean expression using techniques like Karnaugh Maps (K-maps) or Boolean algebra to minimize the number of gates used.

5. Circuit Diagram:

   • Draw the circuit diagram using the simplified Boolean expression and appropriate logic gates.

Practical Applications of Combinational Circuits

Combinational circuits are used in various practical applications, including:

1. Arithmetic and Logic Units (ALUs):

   • ALUs in CPUs perform arithmetic and logical operations. They use combinational circuits to process data based on the given inputs.

2. Data Transmission:

   • Multiplexers and demultiplexers are combinational circuits used in data routing and switching in communication systems.

3. Code Converters:

   • Combinational circuits are used to convert data from one code to another, such as binary to Gray code or BCD (Binary-Coded Decimal) to binary.

4. Encoders and Decoders:

   • Encoders convert multiple inputs into a smaller number of outputs, while decoders perform the reverse operation. These are essential in digital communication and data storage.

Example: 2-to-4 Line Decoder

A 2-to-4 line decoder is a simple example of a combinational circuit. It has two inputs (A and B) and four outputs (Y0, Y1, Y2, Y3). Each output represents one of the possible combinations of the inputs.

Truth Table:

A	B	Y0	Y1	Y2	Y3
0	0	1	0	0	0
0	1	0	1	0	0
1	0	0	0	1	0
1	1	0	0	0	1

Boolean Expressions:

• Y0 = !A & !B
• Y1 = !A & B
• Y2 = A & !B
• Y3 = A & B

Advantages and Limitations

Advantages:

• Speed: Fast operation as there are no memory elements to introduce delay.
• Simplicity: Easier to design and analyze compared to sequential circuits.

Limitations:

• No Memory: Cannot store past states or outputs.
• Scalability: As the number of inputs increases, the complexity of the circuit grows.

Conclusion

Combinational circuits form the backbone of many digital systems, enabling a wide range of functionalities from basic arithmetic to complex data processing. Understanding their design, operation, and applications is crucial for anyone looking to delve deeper into digital electronics. With a solid grasp of combinational circuits, one can progress to more complex topics like sequential circuits and integrated system design.
