Understanding the Fundamentals
of Basic Electricity
Electricity powers every aspect of modern life — from the light in your room to the motors in factories. This complete beginner's guide explains what electricity is, how it works, and what every student and engineer must know to get started.
What is Electricity?
Electricity is the flow of electric charge through a conductor. Electric charge is a fundamental property of matter, carried by subatomic particles — primarily electrons (negative charge) and protons (positive charge). When electrons are forced to move in a particular direction through a conductive material, that movement constitutes an electric current.
Everything around us is made of atoms. Each atom contains a nucleus of protons and neutrons, surrounded by electrons orbiting in shells. In conductive materials like copper, the outermost electrons are loosely bound and can move freely between atoms — these are called free electrons, and they are the basis of electrical current.
Electricity is essentially the controlled movement of electrons through a conductor. The force that drives this movement is called voltage, and the rate of movement is called current.
Key Electrical Properties
To understand how electrical circuits work, you must first understand the four fundamental electrical quantities. These four properties are interconnected — changing one always affects the others.
Ohm's Law Explained
Ohm's Law is the single most important formula in basic electrical engineering. Discovered by German physicist Georg Simon Ohm in 1827, it describes the mathematical relationship between voltage, current and resistance in a conductor.
V = I × R — Voltage equals Current multiplied by Resistance. If you know any two values, you can always calculate the third. This law applies to any linear (ohmic) conductor at constant temperature.
For example: if a circuit has a 12V battery and a 4Ω resistor, the current flowing will be I = 12 ÷ 4 = 3 Amperes. The power dissipated will be P = 12 × 3 = 36 Watts.

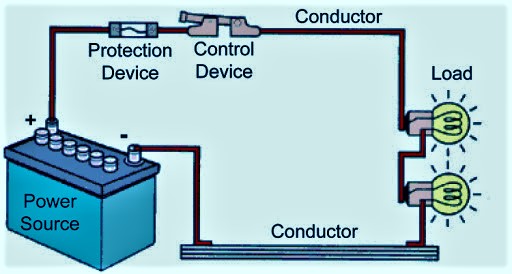

Components of an Electrical Circuit
An electrical circuit is a closed loop that allows electric current to flow from a source, through components, and back to the source. Every functional circuit contains at least these elements:
| Component | Symbol | Function | Examples |
|---|---|---|---|
| Voltage Source | V / EMF | Provides the driving force (EMF) to push current around the circuit | Battery, generator, power supply |
| Conductors | Wire | Low-resistance path for current to flow through the circuit | Copper wire, aluminium cable |
| Resistor / Load | R | Consumes electrical energy, converting it to another form | Light bulb, motor, heater |
| Switch | S | Opens or closes the circuit to control current flow | Toggle switch, push button, relay |
| Fuse / Breaker | F / CB | Protects circuit from overcurrent by breaking the path | Fuse wire, MCB, RCCB |
| Capacitor | C | Stores electrical energy in an electric field | Electrolytic, ceramic, film capacitor |
| Inductor | L | Stores energy in a magnetic field, opposes changes in current | Coil, transformer winding, choke |
A circuit must be closed (complete loop) for current to flow. An open circuit — like a broken wire or open switch — stops all current flow immediately. A short circuit bypasses the load entirely and can cause dangerously high current.
Series vs Parallel Circuits
The two fundamental ways to connect components in a circuit are series and parallel. Each has distinct characteristics for voltage, current and resistance.
- Single path — same current flows through all components
- Voltage divides across each component
- R_total = R1 + R2 + R3 (resistances add up)
- If one component fails — entire circuit breaks
- Used in: Christmas lights, fuse circuits
- Multiple paths — current divides between branches
- Voltage is same across all branches
- 1/R_total = 1/R1 + 1/R2 (resistance decreases)
- If one branch fails — others keep working
- Used in: Home wiring, power distribution
All household electrical wiring uses parallel circuits. This means every appliance receives the full 230V supply voltage, and switching off one device doesn't affect others. This is why all your sockets and lights work independently.
AC vs DC Power
Electricity comes in two fundamental forms: Alternating Current (AC) and Direct Current (DC). Understanding the difference is essential for working with any electrical system.
- Direction reverses periodically (50Hz or 60Hz)
- Used for mains power supply
- Easily stepped up/down with transformers
- Efficient for long-distance transmission
- Examples: Wall sockets, grid power
- Flows in one direction only
- Used in batteries, electronics, solar panels
- Required by most electronic components
- Converted from AC using rectifiers
- Examples: Batteries, USB chargers, LED drivers
Essential Electrical Terminology
Familiarity with standard electrical terms is essential for reading diagrams, specifications and safety labels. Here are the key terms every beginner must know:
| Term | Unit | Definition |
|---|---|---|
| Voltage (V) | Volt (V) | Electrical potential difference — the "pressure" driving current flow |
| Current (I) | Ampere (A) | Rate of charge flow through a conductor — coulombs per second |
| Resistance (R) | Ohm (Ω) | Opposition to current flow — depends on material and dimensions |
| Power (P) | Watt (W) | Rate of energy transfer — joules per second |
| Energy (E) | kWh / Joule (J) | Total electrical work done — power multiplied by time |
| Frequency (f) | Hertz (Hz) | Number of AC cycles per second — 50Hz in Bangladesh/UK |
| Impedance (Z) | Ohm (Ω) | Total opposition to AC current — includes resistance and reactance |
| Capacitance (C) | Farad (F) | Ability to store charge — measured in microfarads (µF) in practice |
| Inductance (L) | Henry (H) | Tendency to oppose changes in current — stores energy magnetically |
| Ground / Earth | — | Reference point at zero potential — essential for safety |
| Short Circuit | — | Unintended low-resistance path bypassing the load — dangerous |
| Open Circuit | — | Broken circuit — no current can flow |
Electrical Safety Precautions
Electricity is invisible and silent — but it can be deadly. Even household voltages (230V) can cause fatal electric shock under the right conditions. Following proper safety precautions is not optional — it is mandatory.
A current as small as 10 milliamps (0.01A) through the human body can cause painful shock. 100mA can be fatal. Never underestimate electricity — even low-voltage DC can be dangerous under the right conditions. When in doubt, call a licensed electrician.
Conclusion
Electricity is the foundation of all modern technology. Understanding its basic principles — the relationship between voltage, current, resistance and power through Ohm's Law; the difference between series and parallel circuits; the distinction between AC and DC; and the essential safety rules — gives you the foundation you need to explore electrical engineering further.
Whether you are a student preparing for exams, a homeowner trying to understand your own electrical system, or a working technician building on core knowledge, these fundamentals never change. Every advanced electrical concept — from transformer theory to power electronics — is built on exactly what you have just read.
Now that you understand the basics, explore more advanced topics: three-phase power systems, transformer operation, power factor correction, cable sizing, and motor control. Use our free online calculators at CircuitSecrets to practise applying these formulas to real problems.
